NMC modules
60 used Fiat E-Ducato battery modules
60 pcs · 948 kWh · Poland
1 / 27
Documents
- DatasheetPDF · 448 kBOn request
- Technical documentPDF · 12.3 MBOn request
- ChemistryNMC
- TypeModules
- ConditionUsed, ex-test-vehicle packs with very few cycles
- Cell formatCylindrical
- Listed1 Oct 2026
- PriceOn request
Availability
- Hazmat classUN3480, Lithium-ion batteries (Class 9)
Partial lots negotiable. Third-party pre-shipment inspection supported on request.
Condition
- Pack diagnosticsThe BMS is the main weak point of these packs. A diagnostic read of the whole pack through the BMS does not always reflect the actual condition of the cells, which is why condition is judged at cell l
- Cell testingAfter dismantling, every cell is tested individually on a sorting machine and equipment. Typical sorted-cell values: internal resistance 23-25 mOhm, 3.6-3.7 V, 2.9 Ah nominal.
- Track record120 modules of this type have been dismantled into cells and sold since June 2026, with no returns reported.
- Test reportsSome packs arrive with a factory test report (BMS state, faults, insulation, cell voltage spread); not every pack does.
- Capacity (SoH)No per-module capacity figure is stated. Individual capacity testing can be done as part of a third-party inspection.
Technical specifications
Module
- Nominal voltage388 V
- Nominal energy15.8 kWh
- Nominal capacity40.6 Ah
- Cell configuration8 x 14S14P sub-modules · 1,512 active cells of 1,568 positions
- Sub-module14S14P, 1.97 kWh · 8 per module
- CoolingLiquid (fluid cooling/heating)
Cell (BAK N18650CL-29)
- FormatCylindrical 18650
- Nominal voltage3.6 V
- Nominal capacity2.9 Ah · 2.8 Ah min
- Tested voltage3.6 - 3.7 V
- Tested internal resistance23 - 25 mΩ
- Energy density213 Wh/kg (1C) · 225 Wh/kg (0.2C)
- Cycle life≥ 80% after 1,000 cycles · ≥ 90% after 500
- Max charge current2.75 A
- Max discharge current8.25 A
- Weight48 g
Operating temperature
- Battery, max range-20 to +60 °C
- Cell charge range0 to 45 °C
- Cell discharge range-20 to 60 °C
Dimensions (cell)
- Diameter18.35 mm
- Height64.85 mm
About this lot

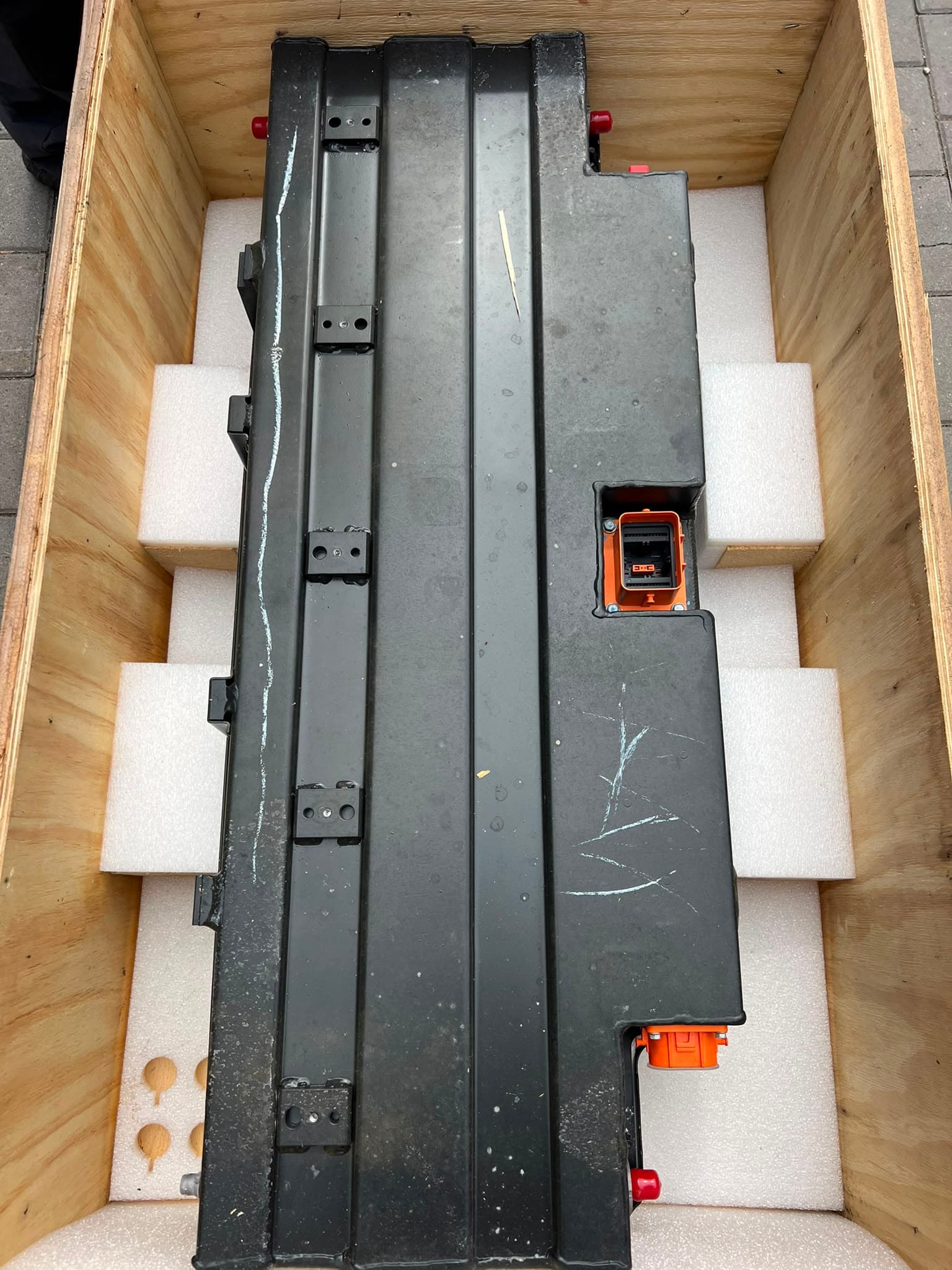

Traction battery modules from the Fiat E-Ducato electric van, removed from test-vehicle packs with very few cycles. Each module is a self-contained, full-voltage unit built from BAK N18650CL-29 cylindrical cells. Available as whole modules for second-life storage, as smaller sub-modules, or disassembled into sorted and tested cells.
